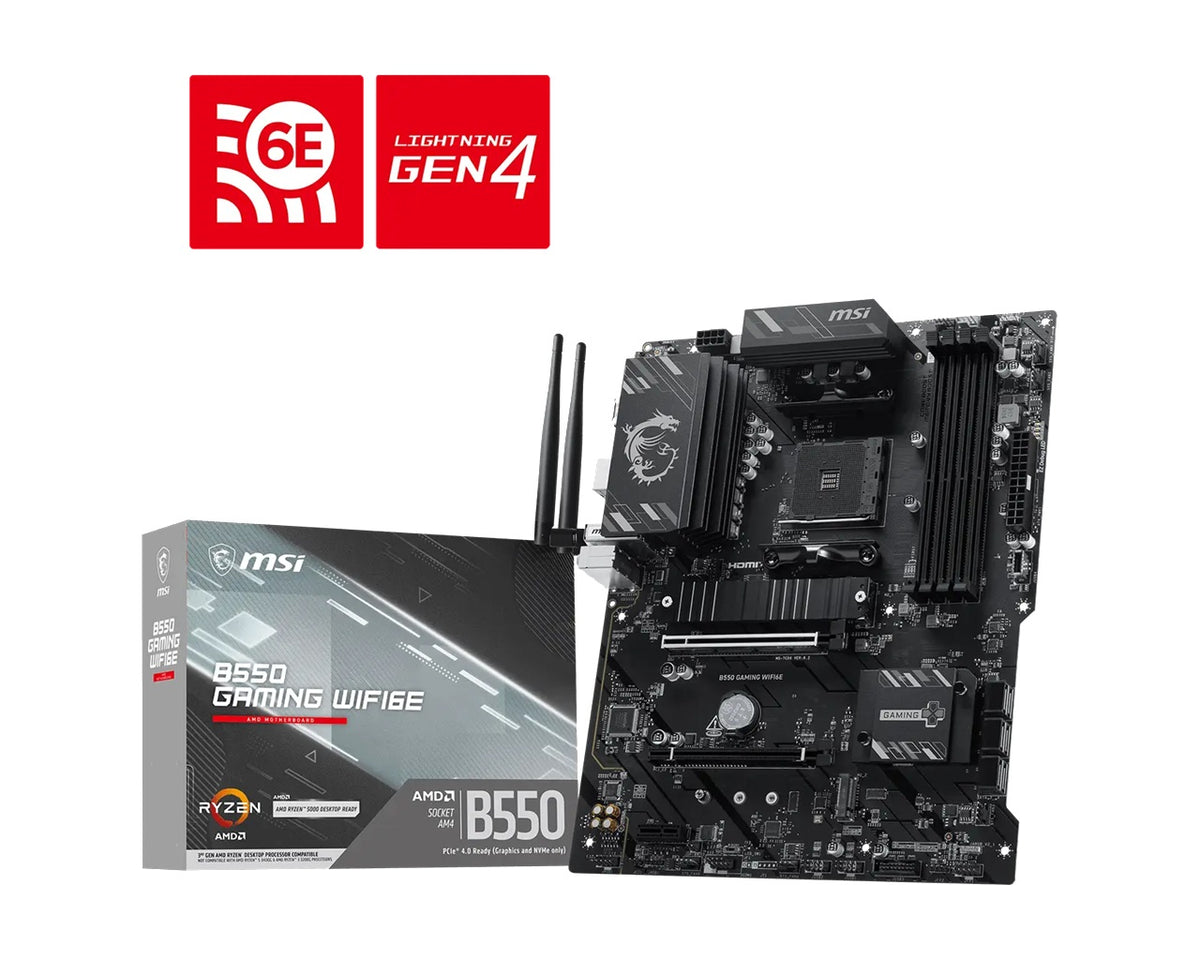

MSI B550 GAMING WIFI6E, AMD B550, AM4, Ryzen 5000/3000, DDR4 128GB, PCIe 4.0, 2x M.2, Wi-Fi 6E, 1Gb LAN, USB 10Gbps, ATX, 4866+MHz OC, RGB, 7.1 Audio

MSI B550 GAMING WIFI6E

The B550 GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.

SPECIFICATION
Chipset AMD B550
CPU
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Socket AM4

Memory
4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 3866+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz

• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Onboard Graphics
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz*

Slot
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio
Realtek® ALC897
7.1-Channel High Definition Audio

Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
6x SATA 6G

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)

LAN
Realtek® 8111H 1G LAN

Internal IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

WIRELESS LAN & BLUETOOTH
Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Dual-band 1T1R mode
Supports MU-MIMO RX
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**

LED FEATURE
4x EZ Debug LED

OPERATING SYSTEM
Support for Windows® 11 64-bit

PCB Info
ATX
243.84mmx304.8mm
