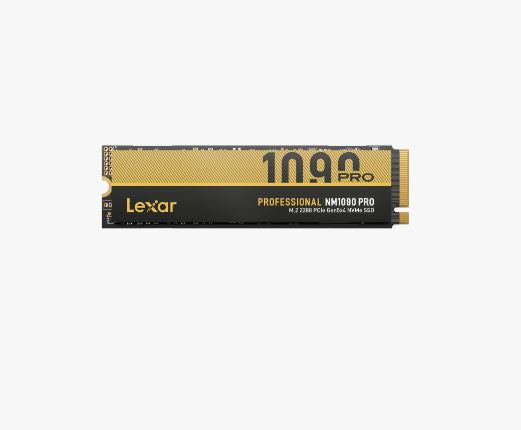

Lexar LNM109P001T-RNNNG Internal SSD NM1090 PRO PCIe 5.0 1TB,up to 14,000MB/s read, 10,000MB/s write M.2 2280 - 5 year limited warranty

Lexar LNMPLYX001T-RNNNG Internal SSD PLAY X PCIe 4.0 1TB,up to 7400MB/s read, 6400MB/s write M.2 2030, M.2 2230, M.2 2280

Capacity
1TB, 2TB, 4TB, 8TB
Form Factor
M.2 2280
Interface
PCIe Gen 5x4
Speed
1TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 10,000MB/s1, random read up to 1650K IOPs, random write up to 1800K IOPs
2TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1800K IOPs
4TB: Sequential read speed up to 14,000MB/s1, sequential write speed up to 13,000MB/s1, random read up to 2100K IOPs, random write up to 1700K IOPs
8TB: Sequential read speed up to 14,400MB/s1, sequential write speed up to 13,400MB/s1, random read up to 2000K IOPs, random write up to 2100K IOPs
Dram Capacity
1TB: 2GB, 2TB: 2GB, 4TB: 4GB, 8TB: 8GB
Operating Temperature
0° to 70° C (32°F to 158°F)
Storage Temperature
-40° to 85° C (-40°F to 185°F)
Shock Resistant
1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20G, 1Oct/min, 30min/axis (X,Y,Z)
TBW
1TB: 700TBW, 2TB: 1400TBW, 4TB: 2800TBW, 8TB: 5600TBW
MTBF
1,500,000 Hours
Dimension (W x L x H)
1TB-2TB: 80 x 22 x 3.6 mm (3.15' x 0.87' x 0.14')
4TB-8TB: 80 x 22 x 3.9 mm (3.15' x 0.87' x 0.15')
Weight
1TB-2TB：8g / 0.017lbs
4TB: 8.5g / 0.019 lbs
8TB: 9.6g / 0.021 lbs
Warranty
Five-year limited warranty
