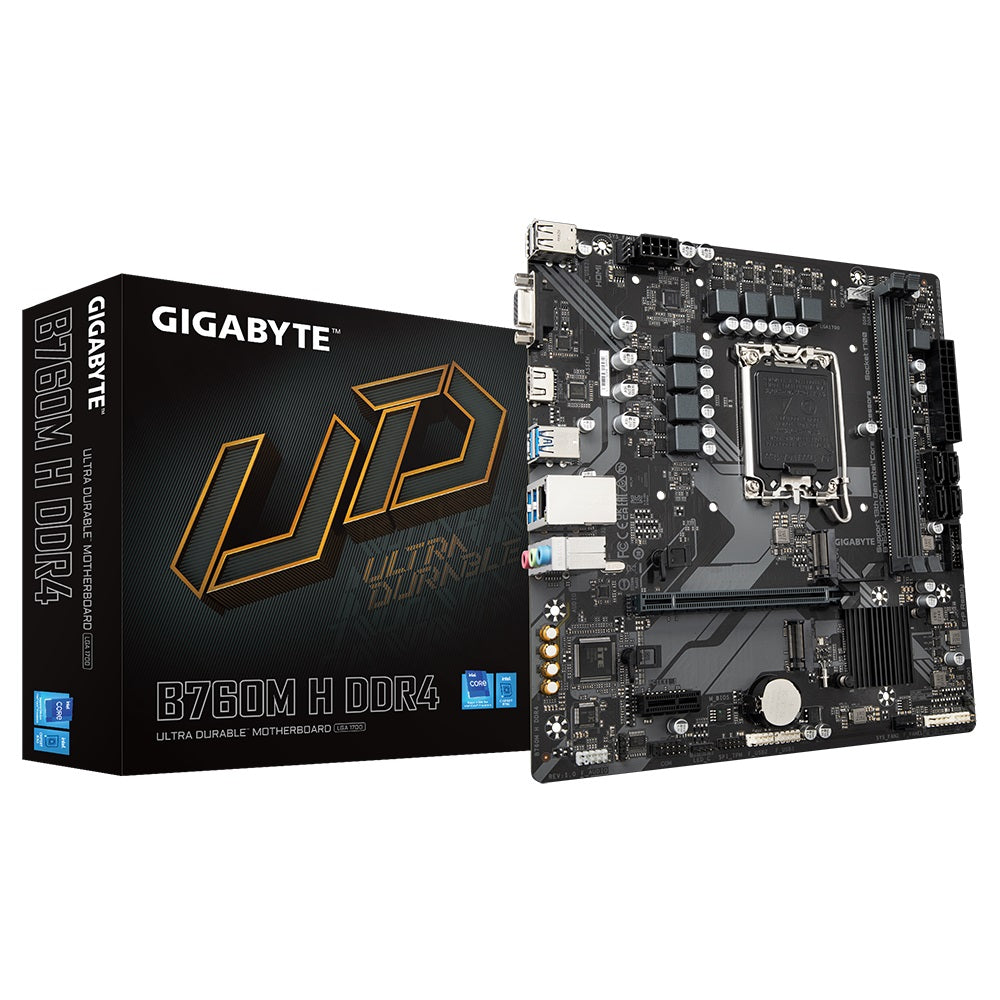

Gigabyte B760M H DDR4 Intel LGA 1700 m-ATX Motherboard, 2x DDR4 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0,
$280.00
Afterpay or 4 payments of $70.00 ⓘ
PayPal Pay in 4 from $70.00 ⓘ
Available for eligible Australian customers. Approval, account limits and provider terms apply.
In stock and ready to order
✓Secure checkoutProtected payment processing
⚡Fast dispatchCarefully packed in Australia
↺Support availableHelp before and after purchase
Product details +

Gigabyte B760M H DDR4 Intel LGA 1700 m-ATX Motherboard, 2x DDR4 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0,

FEATURES:

CPU: LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

Chipset: Intel® B760 Express Chipset.

Memory:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer 'Memory Support List' for more information.)

Onboard Graphics:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

Expansion Slots:
CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors:
2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
