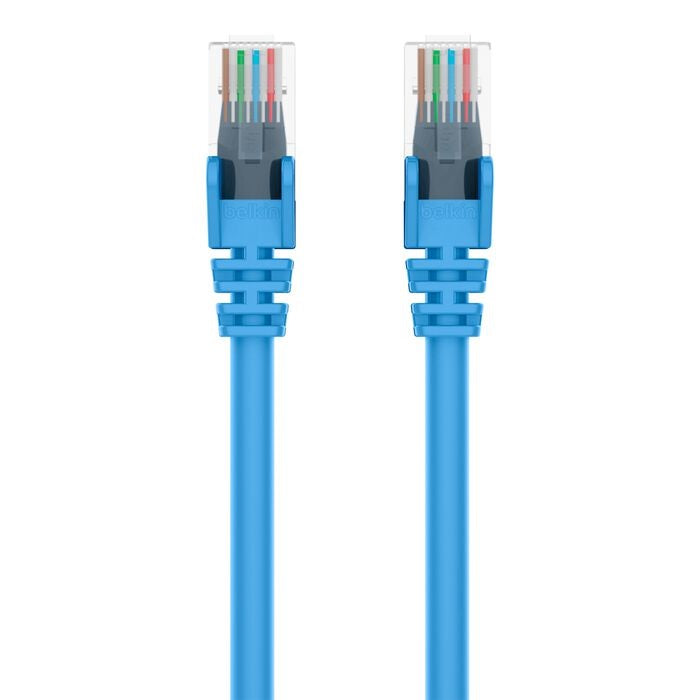

Belkin Cat6 Network Cables (1M) - Blue (A3L980bt01MBLUS), Exceeds 500MHz In Performance Tests, Snagless Prevents Breaking & Cracking, 2 Years Warranty

Belkin Cat6 Network Cables (1M) - Blue (A3L980bt01MBLUS)

At a Glance
Maximise your network speed with a 7-foot high-bandwidth CAT6 cable. Learn More

Ideal for VoIP, video, and file transfers
Exceeds 500MHz in performance tests
Belkin 2 year warranty

Technical Specifications
Cable Characteristic
Unshielded twisted pair (UTP)

Cable Type
Cat 6

Characteristic Impedence
100±15Ω @ 1 ~ 550MHz
100±15Ω @ 1 ~ 550MHz

Conductor Construction
Bare Stranded Copper

Conductor Resistance
93.8Ω/km/20°C max

Conductor Size
24AWG x 4pairs

Connector on First End
1 x RJ-45 - male

Connector on Second End
1 x RJ-45 - male

Connectors
RJ45

Dielectric Strength
AC 1.5kV

Flame Retardant Test
CM

Insulation Material
HDPE

Jacket Diameter
5.9±0.15mm

Jacket Material
PVC

Mutual Capacitance
56pF/m max

Propagation Delay
536nS/100m max @ 550MHz

Spark Test
2.5kV

Standards Compliance
ISO/IEC 11801; TIA/EIA-568-B.2-1

Structural Return Loss
8.6dB min at 550MHz
