ASUS nVidia GeForce Dual RTX5070 OC 12G-EVO, GDDR7, 6144 CUDA, PCIe 5.0, 28Gbps, 192-bit, 2572MHz OC, 2.5-Slot, SFF Ready, 8K
Product details +

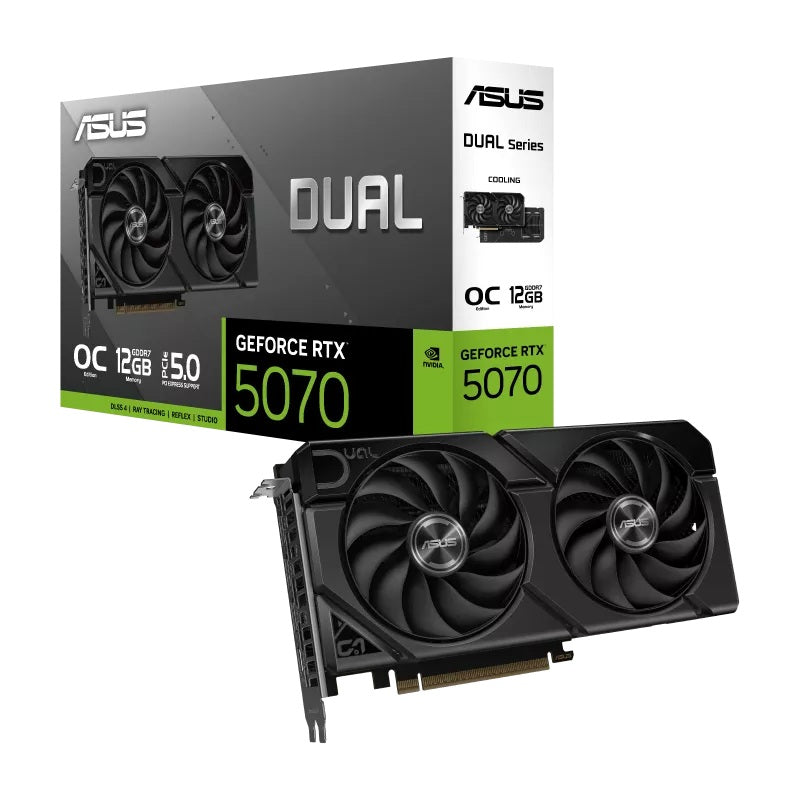

ASUS nVidia GeForce Dual RTX5070 OC 12G-EVO
ASUS Dual GeForce RTX™ 5070 EVO combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
SPECIFICATIONS
Model
DUAL-RTX5070-O12G-EVO
Graphic Engine
NVIDIA® GeForce RTX™ 5070
AI Performance
988 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
12GB GDDR7
Engine Clock
OC mode: 2572MHz
Default mode: 2542MHz (Boost Clock)
CUDA Core
6144
Memory Speed
28 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x Thank You Card
1 x Adapter Cable (1 to 2)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
229 x 120 x 50 mm
Recommended PSU
750W
Power Connectors
1 x 16-pin
Slot
2.5 Slot
SFF Ready
Compatible
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
