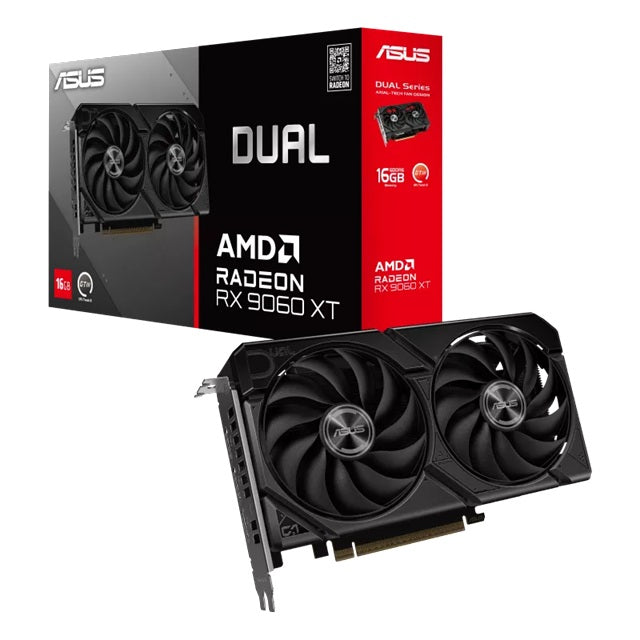

ASUS Dual RTX9060XT 16G, GDDR6, PCIe 5.0, 20Gbps, 128-bit, HDMI 2.1b, 2x DP 2.1a, Dual Fan, 2Yr Wty

ASUS Dual RTX9060XT 16G, GDDR6, PCIe 5.0, 20Gbps, 128-bit, HDMI 2.1b, 2x DP 2.1a, Dual Fan, 2Yr Wty

ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

SPECIFICATIONS
Model
DUAL-RX9060XT-16G
Graphic Engine
AMD Radeon™ RX 9060 XT

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
16GB GDDR6

Engine Clock
OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)
Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)

Stream Processors
2048

Memory Speed
20 Gbps

Memory Interface
128-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1b), Yes x 2 (Native DisplayPort 2.1a), HDCP Support Yes (2.3)

Maximum Display Support
3

NVlink/ Crossfire Support
No

Accessories
1 x Thank you card
1 x Speedsetup Manual

Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions
202 x 120 x 49mm

Recommended PSU
550W

Power Connectors
1 x 8-pin

Slot
2.5 Slot

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
