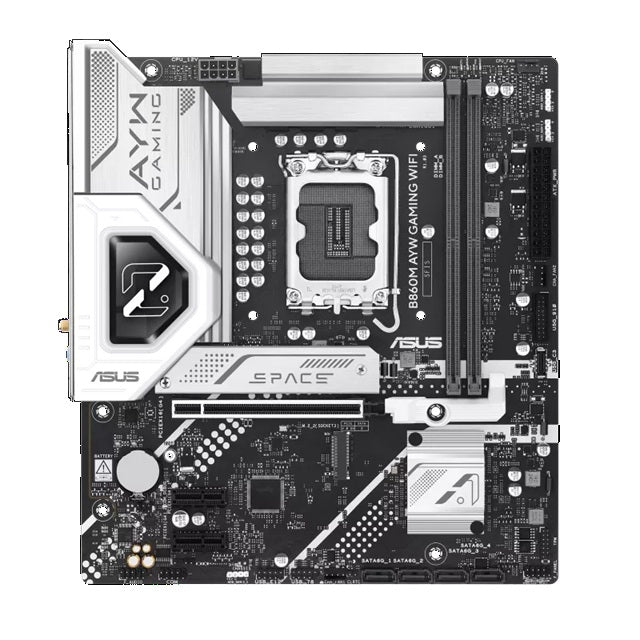

ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0, 2 x M.2 slots, WiFi 6,

ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard Up to 128GB DDR5 (2x Slots), 1 x PCIe 4.0, 2 x M.2 slots, WiFi 6,

ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The B860M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

SPECIFICATION
Model B860M AYW GAMING WIFI
Chipset Intel® B860 Chipset
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® B860 Chipset
2 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Form Factor
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4cm x 22.2cm)
