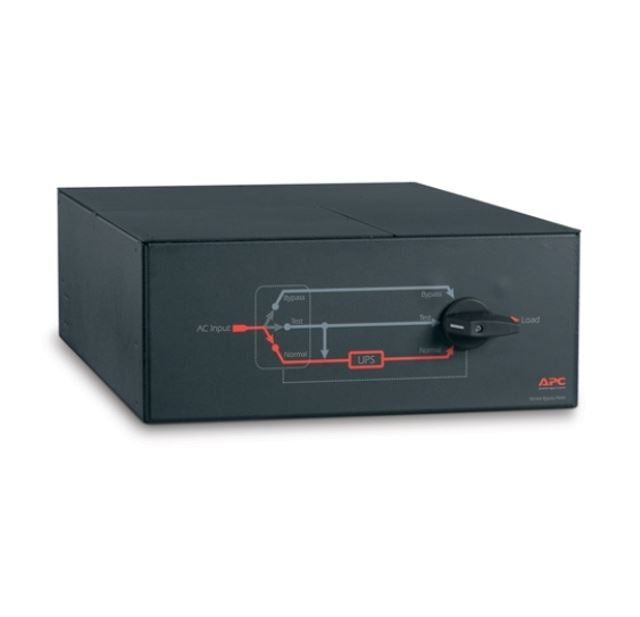

APC Service Bypass Panel, 4U RM, 230V/HW Input, 2x IEC C19 & 8x IEC C13 Output
$4,207.50
Afterpay or 4 payments of $1,051.88 ⓘ
PayPal Pay in 4 from $1,051.88 ⓘ
Available for eligible Australian customers. Approval, account limits and provider terms apply.
In stock and ready to order
✓Secure checkoutProtected payment processing
⚡Fast dispatchCarefully packed in Australia
↺Support availableHelp before and after purchase
Product details +

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; IEC-320 output- (8) C13 (2) C19

Main Input Voltage 230 V
Main Output Voltage 230 V
Number of rack unit 4U
Number of cables 1
Provided equipment- Installation guide, Rack mounting brackets, User manual
Network frequency 50/60 Hz
Number of input connectors- 1 hard wire 3-wire (1P + N + E), 1 hard wire 4-wire (3P + N)
Max line current 100 A
Input current limits 100 A
Load capacity 20000 VA
Power factor 0…1
Max current draw 100 A
Number of power socket outlets- 8 IEC 60320 C13, 2 IEC 60320 C19
Protection type Circuit breaker
Efficiency 99 %
Product certifications- CSA, GOST
Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation -20…50 °C
Relative humidity 0…95 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -40…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m

Mounting mode- Rack mounted
